Print Patient Images & Layouts

You can easily print an individual image, or the entire image layout displayed on your screen to any printer installed on your workstation, including "virtual" printers that save the output as a graphical file.

Click to OpenPrint a Layout

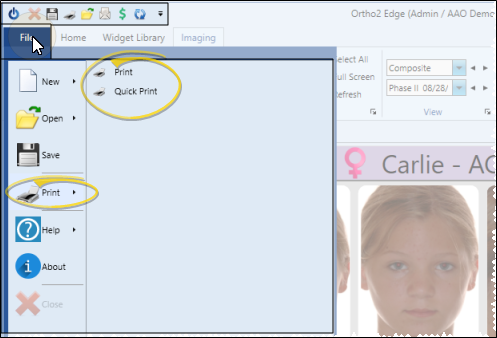

Open the image layout you want to work with, then click Print from the File ribbon bar or your Quick Access toolbar. Or, press Ctrl+P on your keyboard. Then select the printing output options. If you specified the print orientation (portrait or landscape) for this type of layout in your Imaging Layouts editor, the layout will print in that orientation. Otherwise, Edge Imaging will choose the most appropriate orientation.

If you selected the Quick Print option from the File ribbon bar, the output is immediately sent to your default imaging printer, as set up in your Imaging user options.

Click to OpenPrint an Individual Image

Right-click the image, and select Print. Then select the printing output options. The image will print according to the settings for your Image Print Layout, in your Image Layout editor.

Viewing Mode Only - The right-click menu is available only when you are viewing an image: These options are not available while you are in Edit mode.


Click to OpenPrint Image Comparisons

When you initiate the Print function while comparing images, all images will appear on one page, similar to printing an image layout. See "Compare Images" for details.

Click to OpenPrint Images in Merge Letters

You can include images in your mail merge documents. See "Mail Merge Patient Images" for details.
