Set Up Quick Labels

Use the Quick Label editor to set up the information and format of your quick labels.

How to Get Here

Home ribbon bar > Editors > General > Quick Labels. (You can also search for the editor you want to work with.)

Click Editors from the Tools section of the Home ribbon bar.

Select General in the list at the left and choose the Quick Labels option.

Select label type - Choose the type of label you want to work with. Note that you can set up each type of Quick Label to include different types of information.
View template - The Quick Label template shows you the currently selected fields, and where those fields will print on your Quick Label.

Example Patient Quick Label template:

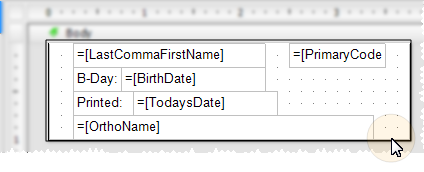

Example Chart Quick Label template:
Add & move fields - The common fields available for this type of Quick Label are listed below the template, in the Data Source section. You can click and drag a field name from the list onto the template, as well as click and drag fields already on the template to new locations.
Remove fields - Right-click a field on the template, and select Delete.
Change the field format - Right-click the field to work with, and select Properties. Then, choose the type of formatting to modify. For example, you can select Font or Appearance to change the way the field will look when it prints, or choose General to work with the contents and conditional requirements of the field.
Add other objects - Select an item from the Toolbox at the top of the window to add other items to your label, such as Images, static Text, Barcodes, and Rectangles.
