Use the Imaging User Options to set up your imaging display preferences, your default imaging printer, and the image import options that are unique to you and/or your workstation. Note that your security rights must include full access to the User Options Editor setting in the Practice Administration security group for this feature to work for you.

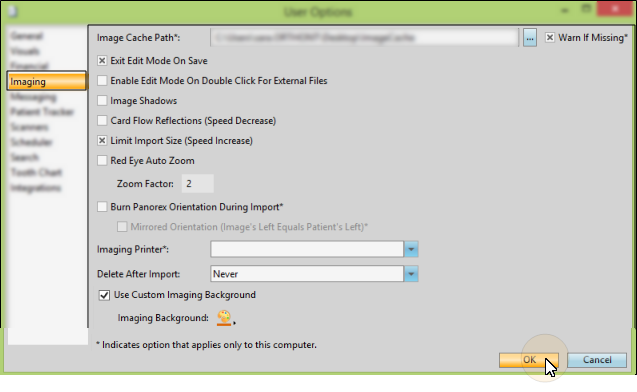

File, Home, or Scheduler File Ribbon Bar - User Options > Imaging.
The options marked with an asterisk ( * ) are specific to this workstation: The remaining options are specific to you - other users that log onto this computer may have other settings.
Image cache location - (* Workstation-specific setting.) Designate an Image Cache location that will be used by this workstation for new and changed images waiting to be uploaded to your server, and for archived images to remain linked to your patient folders. Enable the Warn if Missing option to be sure this location is in place and prevent accidental image deletion.
Exit edit mode on save - Enable this option to return to viewing mode after saving changes you have made to an image while in Edit mode. If this option is disabled, you will remain in Edit mode after you save changes, so that you can make further changes to the image as needed.

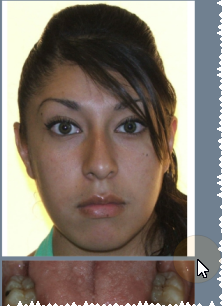

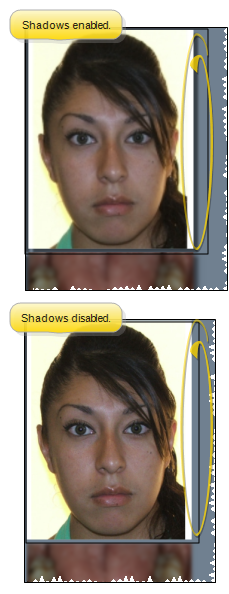

Image shadows - (User-specific setting.) Enable or disable this option to include or remove a shadow effect behind your image layouts. This does not affect your card flow layouts: The card flow layout can optionally include an image reflection, rather than a shadow effect.

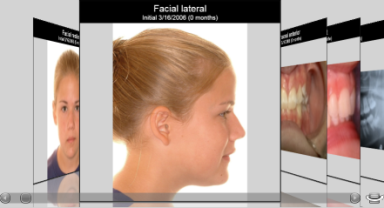

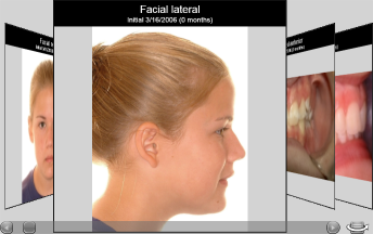

Card flow reflections - (User-specific setting.) Enable or disable this option to include or remove a reflection of each image in your card flow layouts. (Note that enabling this option may decrease the speed of your imaging system.)
Limit import size - (User-specific setting.) Enable this option to limit the file size of images you import to 1.5 times the size you have set for the large height and width options for that image type.
Red eye auto zoom - (User-specific setting.) Enable this option, and enter a magnification value (i.e. Zoom Factor) to use for the red eye reduction tool. The larger the number, the closer the zoom: A magnification value of 1 or disabling the option does not zoom into the image at all.
Burn panorex orientation during import - (* Workstation-specific setting.) Enable the Burn Panorex image option to include the orientation label (L or R) on panorex images as they are imported into patient folders. If your machine flips panorex films, be sure to enable the Mirrored Orientation option also.
Imaging printer - (* Workstation-specific setting.) Select the default printer to use for printing images. When you use the Quick Print feature, the image or layout will be sent to this printer automatically.
Delete after import - (User-specific setting.) Use this option to direct whether or not images will be deleted from their original location (i.e. your camera memory card) during import. Choose Prompt to be prompted to delete the images; choose Never to always leave the images in their original location (you will need to manually manage these images later), or choose Always to delete the original files as soon as they are imported.
Save - Click Ok at the bottom of the user options window to save any changes you have made.
User settings / Assign Options choice - If another Edge use has the Imaging options you want to use, that user can use the Assign Options tool to copy those settings to you.
