Use The Presenter

Use the Presenter to duplicate whatever is currently being shown on your main screen on your secondary display screen. This feature is particularly useful for showing patient images to parent and professionals,as well as presenting case, compliance, and treatment progress information.

Get Started

Set Up Secondary Monitor- Your workstation must have dual monitor capabilities, and you must have your main and secondary monitors set up for the Presenter to function successfully.

How to Get Here

Patient Ribbon Bar - Presenter.



---

Edge Imaging Ribbon Bar - Presenter.



---

Edge Animations - Start Presenter or Stop Presenter.



---

Use This Feature

Start Presentation - Click the Start Presenter option to duplicate the window currently showing on your main screen onto your secondary screen.

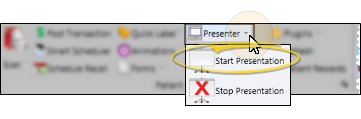

Patient / Imaging Ribbon Bar:

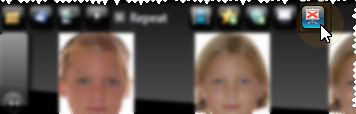

Edge Animations:

---

Update Secondary Display - Actions that change the duplicated window, such as moving through the images in a timepoint, or drawing on an Edge Animations filmstrip, will be shown on your secondary screen. However, actions that open another window on your main screen are not shown on your secondary screen. To update the secondary display to show a different window, navigate to the desired window on your main screen, then click Start Presenter again. The secondary screen will then change to duplicate whatever is now showing on your main screen.

Stop Presentation - Click the Stop Presenter option to end the session, and return your secondary screen to normal dual-monitor use.



Patient / Imaging Ribbon Bar:

Edge Animations:

---
