Use the Visuals options to set up many viewing choices that define how your scheduling window looks and behaves.
File, Home, or Scheduler Ribbon Bar -
User Options > Scheduler > Visuals.
Select User Options from a ribbon bar.
Choose the Scheduler options.

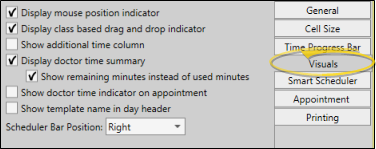

Select the Visuals tab.

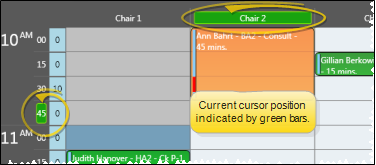

Display mouse position indicator - As you move your cursor around the appointment cells, the Scheduler can highlight your current row and column position along the edges of your schedule, helping you pinpoint your cursor location.
Display class based drag & drop indicator - If you enable the Use Class Based Drag & Drop Indicator, whenever you drag and drop an appointment to a new time slot, the grid cells that match the appointment procedure's classification will remain clear, while cells that do not match the classification will be dimmed so you can more easily find an appropriate time slot for the appointment. If you disable the setting, no cells will appear dimmed as you drag and drop an appointment.

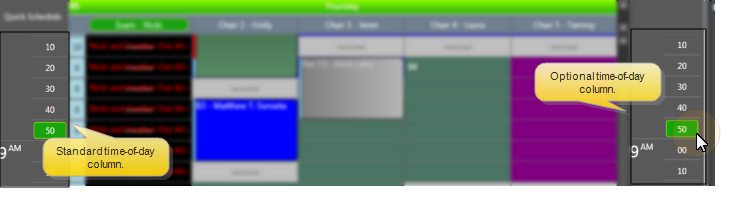

Show additional time column - Enable this option to display the time-of-day column on both the left and right edges of your schedule. Otherwise, the time column displays on the left only.

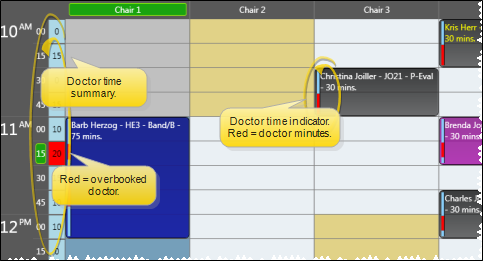

Doctor time settings - Your schedule can show you how many minutes of doctor time is scheduled for each time slot, and exactly where that time is located. This feature is controlled by several settings.
Display doctor time summary - Enable this option to include a column at the left edge of your schedule that indicates the number of doctor time minutes scheduled in that time slot.
Show doctor time indicator on appointment - If you enabled the Display Doctor Time Summary option described above, you can also choose to include a colored bar beside each appointment that indicates exactly which minutes throughout the time slot require the orthodontist.
If your General Grid Options have enabled the Display Kept Appointments feature, and your Visual Options have enabled the Display Doctor Time Summary feature, the amount of doctor time assigned to each time slot remains on your schedule even after appointments have been processed as Kept..
Scheduler bar position - Select where you want your Scheduler bar displayed on your scheduling screens.
Save - Click Ok to save your changes and exit the setup options.
User Settings / Assign Options Tool - The settings you choose here are specific to you; Other operators that log into Edge with a different username and password may have different settings. However, you can use the Assign Options tool to copy your settings to other operators (and vice-versa) if needed. (See "Assign Your Settings to Other Users" for details.)
│
